factory customized Reinforced Flexible Graphite Gasket to Somalia Importers

Short Description:

The reinforced flexible graphite composite gasket is composed of pressed metal sheet and flexible graphite grain after pressing and cutting. 1.Characteristic Reinforced graphite gasket has perfect corrosion resistance, high &low temperature resistance, excellent elastic resilience, good strength. It can be cut into complex shape. Reinforced graphite gasket with inner &outer coating keeps all the excellent characteristics of itself, besides, it could be easily installed, disassembled, ...


Product Detail

Product Tags

Related Video

Feedback (2)

Sticking towards the principle of "Super High-quality, Satisfactory service" ,We've been striving to become a superb business partner of you for Expanded Teflon Gasket Tape , Expanded Ptfe Sealant Tape , Spiral Wound Gasket 304 Ss , Seeing believes! We sincerely welcome the new customers abroad to set up business relationships and also expect to consolidate the relationships with the long-established customers.
factory customized Reinforced Flexible Graphite Gasket to Somalia Importers Detail:

The reinforced flexible graphite composite gasket is composed of pressed metal sheet and flexible graphite grain after pressing and cutting.

1.Characteristic

Reinforced graphite gasket has perfect corrosion resistance, high &low temperature resistance, excellent elastic resilience, good strength. It can be cut into complex shape. Reinforced graphite gasket with inner &outer coating keeps all the excellent characteristics of itself, besides, it could be easily installed, disassembled, undamaged, meanwhile can prevent from medium corrosion, improve the pressure resistance.

2.Technical Data Sheet

Reinforced Material

Pressure Resistance
(N/MM2)

Temperature

Elongation(%)

Recovery(%)

Oxidizing Environment

Non-Oxidizing

CS Reinforce Sheet

≥48

-10-450

-10-550

30-35

15-20

SS304,SS316 Reinforced Sheet

≥48

-240-450

-200-600

30-35

15-30

SS304,SS316 Sheet

≥48

-240-450

-200-600

30-40

10-15

Ss304, Mesh Sheet

≥48

-240-450

-200-600

40-50

15-20



 11223311

Reinforced Material

Breathable

(cm3/min)
(Thick 1.5mm)

Leakage
(Thick 1.5mm)

Seal Constant

N2 m1/hr

Bumming oil A
m1/hr

“M”
factor

“Y”
Pre-tightening

CS Reinforce Sheet

<=0.8

30

<0.5

3.0

9000

SS304,SS316 Reinforced Sheet

<=0.8

60

<0.5

2.5

4000

SS304,SS316 Sheet

<=0.4

35

<0.5

2.0

900

SS304, Mesh Sheet

≥1.0

70

<0.5

3.0

5000

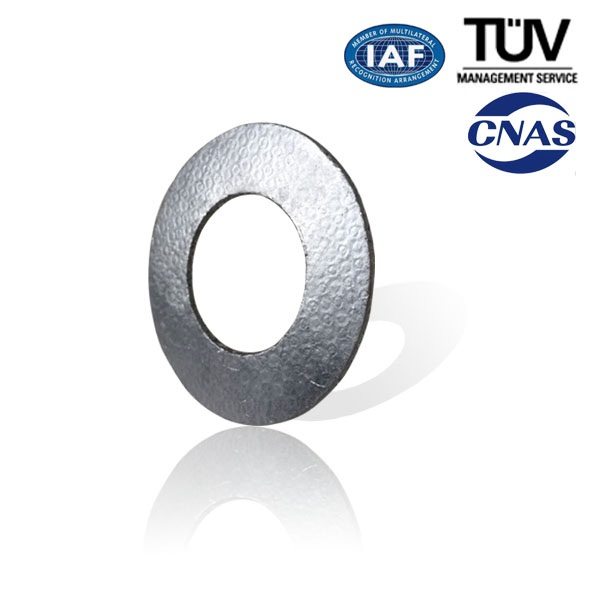

Product detail pictures:

factory customized
 Reinforced Flexible Graphite Gasket to Somalia Importers detail pictures
