Chinese wholesale Expanded PTFE Tape for Cancun Importers

Short Description:

Expanded PTFE sealant tape possesses all the properties of PTFE, resistant to all the corrosive media. Soft, twistable and bendable at will. Even if gravely rusted and worn out sealing face, as long as it is used, the equipment units may continue their service and the sealing can keep its best performance. Excellent anti-wriggle variation ability and cold current resistance. Even in case of cross change of temperature and pressure, good sealing can be assured. l Easy use and replacement l Wi...


Product Detail

Product Tags

Related Video

Feedback (2)

We have now our possess revenue group, design staff, technical crew, QC team and package group. We now have strict excellent regulate procedures for each process. Also, all of our workers are experienced in printing subject for Spiral Wound Gasket Images , Ptfe Packing China , Expanded Teflon Tape , Inspired by the rapid developing market of the fast food and beverage consumables all over the world , We are looking forward to working with partners/clients to make success together.
Chinese wholesale Expanded PTFE Tape for Cancun Importers Detail:

Expanded PTFE sealant tape possesses all the properties of PTFE, resistant to all the corrosive media.

Soft, twistable and bendable at will. Even if gravely rusted and worn out sealing face, as long as it is used, the equipment units may continue their service and the sealing can keep its best performance.

Excellent anti-wriggle variation ability and cold current resistance. Even in case of cross change of temperature and pressure, good sealing can be assured.

l Easy use and replacement

l Wide service scope.

Technical Data Sheet

No.



Project

Technical Indexes

1

PH Range

0-14

2

Density

0.7-0.8g/cm3

3

Temperature resistance

-260-+260℃

4

High pressure resistance

20~25Mpa

5

Elongation

20~30%

6

Tensile strength

30~35Mpa



Regular Size

NO.

SIZE

NO.

SIZE

1

3mm*1.5mm*30m

15

16mm*4mm*10m

2

3mm*2mm*30m

16

20mm*3mm*5m

3

6mm*3mm*20m

17

20mm*4mm*5m

4

7mm*2.5mm*20m

18

20mm*5mm*5m

5

9mm*3mm*15m

19

20mm*7mm*5m

6

9mm*4mm*15m

20

25mm*4mm*5m

7

10mm*3mm*10m

21

25mm*5mm*5m

8

10mm*4mm*10m

22

25mm*8mm*5m

9

10mm*5mm*10m

23

25mm*10mm*5m

10

12mm*3mm*10m

24

30mm*3mm*5m

11

12mm*4mm*10m

25

30mm*4mm*5m

12

12mm*5mm*10m

26

40mm*4mm*5m

13

12mm*6mm*10m

27

50mm*4mm*5m

14

14mm*5mm*10m

28

100mm*0.5mm*10m



Application Area

It can be widely used in diverse pipelines to seal flanges, enameled products, glass, rubber products, plastics, non-rusting graphite lining tower, heat exchanger, pressure container as linings and to seal their flanges, to seal the fillers of diverse pumps and valves and to seal much heavy-calibre flanges which are not so precise, have larger unflat area and irregular shapes and require not too large tighting force.

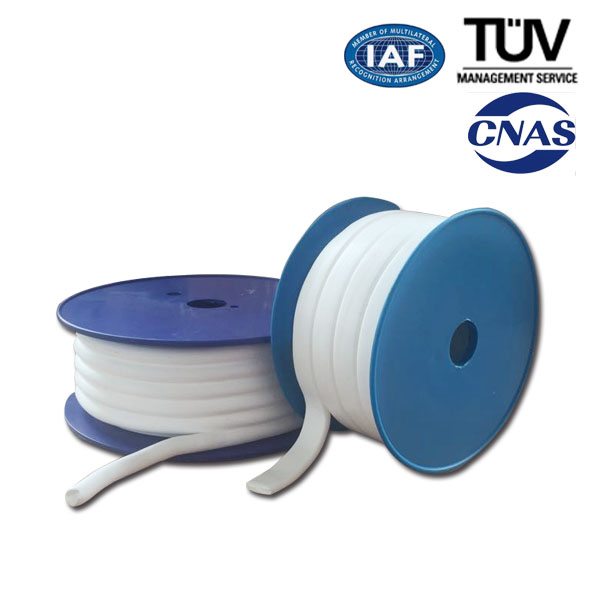

Product detail pictures:

Chinese wholesale
 Expanded PTFE Tape for Cancun Importers detail pictures


Related Product Guide:
O-Ring Sizes for Industrial Applications
Comparison of O-Ring Materials

Our commission should be to provide our customers and consumers with ideal top quality and aggressive portable digital products for Chinese wholesale Expanded PTFE Tape for Cancun Importers, The product will supply to all over the world, such as: Bhutan , Georgia , Melbourne , With the effort to keep pace with world's trend, we will always endeavor to meet customers' demands. If you want develop any other new products, we can customize them for you. If you feel interest in any of our products or want develop new products, please feel free to contact us. We are looking forward to forming successful business relationship with customers all over the world.
